If you'll stitch hats as well as shirts, buy a multi-needle machine with a cap system. A structured baseball cap has to ride on a curved cap frame mounted to a cap driver, and only multi-needle machines take one. Our pick is the Poolin EOM-15, which ships with a cap station and two cap hoops. Shirts only, with patches for the odd hat? A 5x7 home machine like the Brother PE900 costs a fraction as much.
Quick picks
| Best overall for hats and shirts | Poolin EOM-15 | Amazon |
|---|---|---|
| Biggest area for jackets and hoodies | Smartstitch S-1501 | Amazon |
| Best-selling compact multi-needle | Smartstitch S-1001 | Amazon |
| Quiet 12-needle option | Smartstitch S-1201 Plus | Amazon |
| Best if you want Brother | Brother PR680W bundle | Amazon |
| Best home machine for shirts | Brother PE900 | Amazon |
How we picked
One rule did most of the filtering: a machine only counts as "good for hats" here if its listing describes a cap system, cap frame or cap embroidery. Several popular "for hats" lists include machines that can't take a cap frame at all, and we left those out.
From there we compared flat embroidery area (it decides whether a hoodie back or jacket back fits), Amazon rank and ratings (checked October 3, 2026) and the seller support each listing describes. Specs are taken only from each manufacturer's Amazon listing.
This is a spec review. We compared listings and owner feedback and did no hands-on stitching. How we research.
Why hats are the hard part

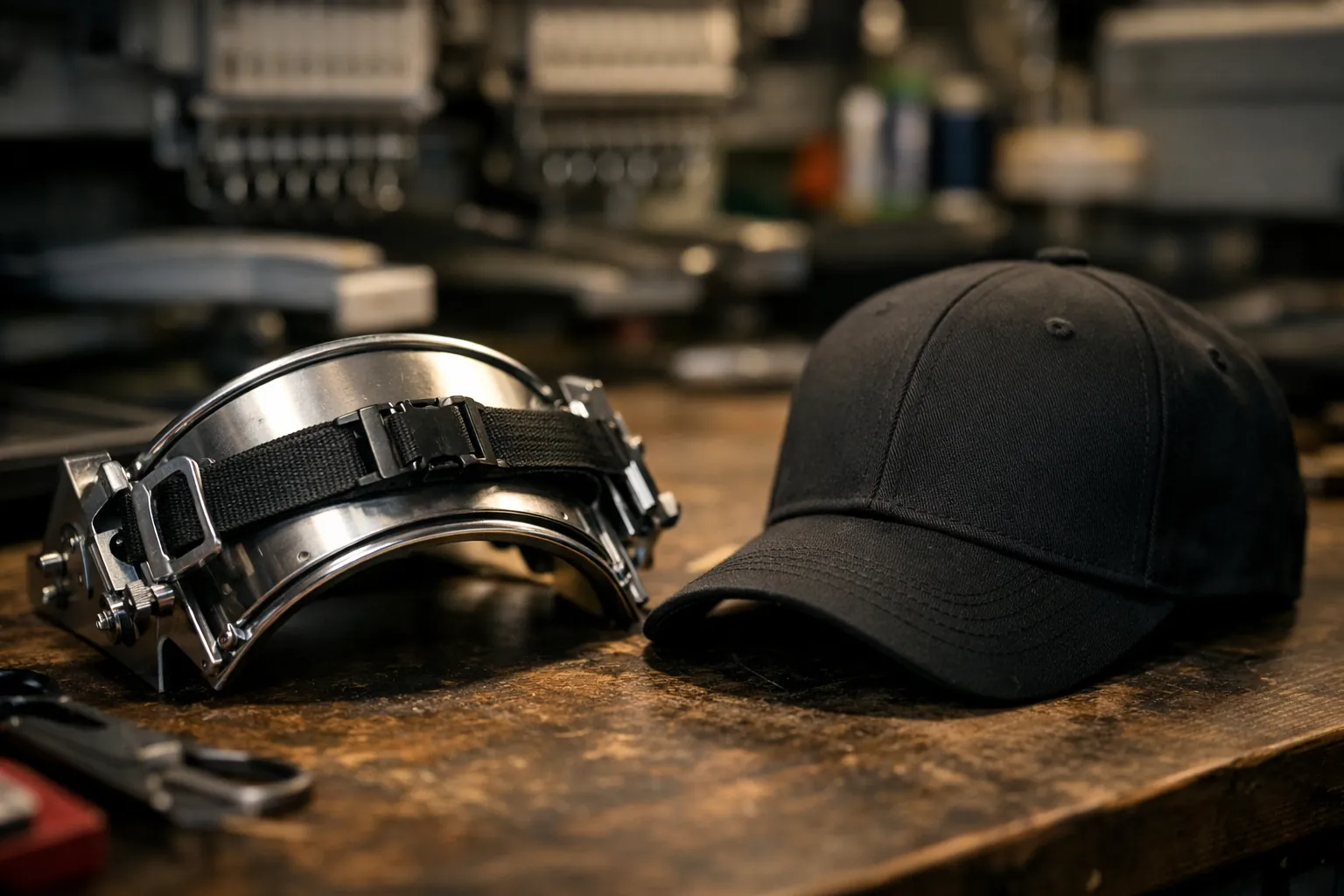

A shirt lies flat in a hoop. A structured cap won't: the front panel is curved and stiff, there's a seam down the middle, and the brim is in the way. So the cap gets clamped onto a curved cap frame, the frame slides onto a cap driver, and the driver rotates the cap around the machine's arm while the design stitches.
That driver needs a free-standing arm to fit around, which is how multi-needle machines are built. It's why cap frames are sold for them and not for single-needle home machines. Brother's own PR-series cap frame and driver set lists compatibility only with its PR multi-needle models, and its field is 130 x 60 mm (about 5 x 2.4 inches).
The best embroidery machines for hats and shirts
Poolin EOM-15
Of everything we found on Amazon, this is the most complete hat-and-shirt package. It arrives ready for caps, with a cap station and two cap hoops. Poolin lists a 270-degree cap system that reaches the sides and back of the cap as well as the front. Structured or unstructured, either works, and so does 3D puff. Five flat hoops run from 2.4 x 1.6 inches up to 14 x 7.9 inches, so left-chest logos and hoodie backs are both covered.
The production features are what a 15-needle machine should have: automatic color change and thread trimming, thread-break detection, and laser positioning so a logo lands in the same spot on every shirt. A stand comes with it, along with thread and prewound bobbins. You also get 50 sheets of cut-away stabilizer. Measure first. It weighs 165 pounds.
- Needles15
- Flat area14.2" x 9.5"
- Caps270° system, up to 850 spm
- Flat speedup to 1,200 spm
- Includedcap station, 2 cap hoops, 5 flat hoops, stand
- Screen9" touchscreen
- TransferWi-Fi + USB (DST, DSB)
Why it stands out
- Cap station and two cap hoops included
- 270-degree cap embroidery and 3D puff
- Laser positioning for repeat logos
Think twice if
- It has few Amazon ratings so far (about 30)
- Uses DST/DSB files, not Brother's PES
Smartstitch S-1501
Fourteen by twenty inches. No other flat area on this page comes close, and it's what you want for full jacket backs and big hoodie designs. Smartstitch also lists a 270-degree wide-angle cap system, laser positioning, automatic color change and a 12-inch touchscreen, and a starter pack of thread and stabilizer (bobbin thread included) comes with it. Owners give it a 4.7-star average from about 190 ratings. Before you buy, Smartstitch offers live demo appointments, and online engineer support continues after the sale.
- Needles15
- Flat area14" x 20"
- Caps270° wide-angle cap system
- Speedup to 1,200 spm
- Screen12" touchscreen
- Extraslaser positioning, auto color change
Why it stands out
- Huge 14 x 20 inch flat area
- 270-degree cap system
- Strong ratings and pre-sale demos
Think twice if
- At 209 pounds it needs a sturdy dedicated table
- You mostly do small left-chest logos and caps
Smartstitch S-1001
On October 3, 2026 no multi-needle machine ranked higher in Amazon's Embroidery Machines category: #7, with 100+ bought in the past month and a 4.8-star average. It's compact, and at 93 pounds it's light by multi-needle standards. Smartstitch lists caps among the items it stitches, but the listing doesn't say which cap frame is in the box. If hats are your main product, confirm the cap kit with the seller before ordering.
- Needles10
- Flat area9.5" x 14.2"
- Speedup to 1,200 spm
- Screen7" touchscreen
- Extrasauto trim, auto color change, thread-break detection, laser positioning
- Weight93 lb
Why it stands out
- Top-ranked multi-needle on Amazon
- Auto trim, auto color change and laser positioning
- Lighter than most commercial heads
Think twice if
- Cap kit contents aren't stated in the listing
- 10 needles, versus 15 on the EOM-15 and S-1501
Smartstitch S-1201 Plus
A middle step between the S-1001 and S-1501. You get 12 needles and a 12 x 16 inch area, which Smartstitch claims is the largest among machines with fewer than 15 needles, plus a guiding system it calls its quietest. Caps are among the listed items. Same caveat as the S-1001: ask the seller what cap frame comes in the box.
- Needles12
- Flat area12" x 16"
- Speedup to 1,200 spm
- Screen10" touchscreen
- Extrasauto trim, auto color change, laser positioning, thread-break detection
Why it stands out
- Large area in a compact machine
- 4.8-star average from 140+ ratings
Think twice if
- Cap kit not detailed in the listing
Brother PR680W bundle
Staying with Brother and its PES-based software? This bundle pairs Brother's 6-needle Entrepreneur machine with a universal cap frame and a stand. Brother lists an 8 x 12 inch area and a crosshair droplight laser accurate to plus or minus 0.5 mm. Designs transfer wirelessly, the machine sends alerts to your phone, and color sort is built in. Two drawbacks: the bundle had no Amazon ratings when we checked, and six needles means more manual thread changes on busy designs.
- Needles6
- Flat area8" x 12"
- Includeduniversal cap frame, PR stand, 8x12, 5x7 and 4x4 frames
- Designs100 built-in, 50 lettering fonts
- TransferWi-Fi (Design Database Transfer)
- Extrascrosshair laser, color sort
Why it stands out
- Brother ecosystem and cap frame included
- Precise laser positioning
Think twice if
- No Amazon ratings yet on this bundle
- Six needles versus 10-15 on the others
Brother PE900
For a shop that's mostly shirts, with patches for hats, a single-needle 5x7 machine is the low-cost route. The PE900 handles left-chest logos and center-chest designs up to 5 x 7 inches. It trims jump stitches automatically and reorders colors to cut down thread changes, and it was #3 in Amazon's Embroidery Machines category. Structured hats are out, because it can't take a cap frame.
- Needles1
- Embroidery area5" x 7"
- Built-in designs193
- Screen3.7" touchscreen
- Extrasjump stitch trimming, color sort
- Capsno cap frame
Why it stands out
- Far cheaper and smaller than a multi-needle
- Plenty for shirts and totes, and for making patches
Think twice if
- No structured caps
- You change thread by hand for every color
Side-by-side comparison
| Machine | Needles | Max flat area | Caps | Rating |
|---|---|---|---|---|
| Poolin EOM-15 | 15 | 14.2" x 9.5" | 270°, cap station + 2 hoops included | 4.5 (about 30) |
| Smartstitch S-1501 | 15 | 14" x 20" | 270° wide-angle system | 4.7 (190+) |
| Smartstitch S-1001 | 10 | 9.5" x 14.2" | Listed; confirm cap kit | 4.8 (130+) |
| Smartstitch S-1201 Plus | 12 | 12" x 16" | Listed; confirm cap kit | 4.8 (140+) |
| Brother PR680W bundle | 6 | 8" x 12" | Universal cap frame included | No ratings yet |
| Brother PE900 | 1 | 5" x 7" | No | 4.5 (290+) |
Shirts: sizes and placement
| Placement | Typical design size | Smallest field that works |
|---|---|---|
| Left chest (polos, tees) | About 3-4" wide | 4" x 4" |
| Sleeve | About 2-3" wide | 4" x 4" (a free-arm or sleeve hoop helps) |
| Center chest | About 5-7" wide | 5" x 7" |
| Large full front | About 8-11" wide | Larger than 5x7; multi-needle territory |
| Hoodie or jacket back | About 10-12" wide or more | 8" x 12" and up |
| Cap front | About 2-2.5" tall | A cap frame |
These sizes are common starting points, not rules. Adjust to the garment and the design, and see our hoop sizes guide.
T-shirts and polos are knits, and knits stretch. Back them with no-show mesh or cut-away stabilizer; tear-away lets the design distort. Our stabilizer guide has the details.
Doing hats on a home machine
No budget for a multi-needle machine? Patches are the dependable route. Stitch the design on twill with a satin border, cut it out, and sew, glue or heat-apply it to the hat. That works on any cap.
Beanies and soft unstructured caps can sometimes be opened at the back seam, or embroidered before they're assembled, and then hooped with stabilizer like any flat item.
You'll also see third-party cap hoops sold for home machines. They hold the cap flat in a standard hoop instead of rotating it, so results are limited, and many have low ratings. Read the reviews closely before buying one.
Supplies for hats and shirts
- Precut caps and hats tear-away stabilizer (4" x 8", 125 pieces), sized for cap fronts.
- 3mm embroidery puff foam for raised 3D lettering on caps, a style customers ask for.
- No-show mesh stabilizer roll for light-colored polos and tees, where cut-away might show through.
- 40-color polyester embroidery thread kit to start your color library.
What to order
Hats in the plan means a multi-needle machine with a cap system, full stop. Order the Poolin EOM-15 if you want the most cap equipment in the box, or the Smartstitch S-1501 if jacket backs matter more than anything. For a shirt-first start on a small budget, get the Brother PE900 and put your hat designs on patches. Planning to sell what you make? Read the best embroidery machine for a small business next.
Specs come from each manufacturer's Amazon listing, checked October 3, 2026. Prices change often, so the buttons above show the current price on Amazon. How we research · Affiliate disclosure
